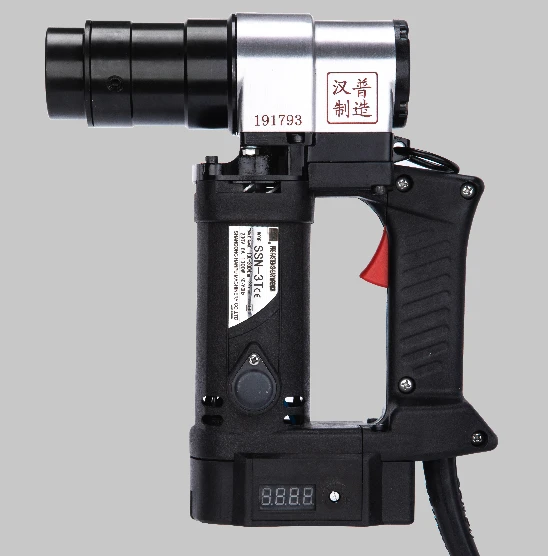

Initial Tightening Electric Shear Wrench
As the name suggests, the initial tightening electric torsional shear wrench is the initial tightening work for high-strength torsional shear bolts.
- Nopea toimitus
- Laatuvakuutus
- 24/7 asiakaspalvelu
Tuotteen esittely
As the name suggests, the initial tightening electric torsional shear wrench is the initial tightening work for high-strength torsional shear bolts.
The main models of high-strength torsional shear bolts are M16, M20, M22, M24, M27, M30, etc. The initial tightening electric torsional shear wrench produced by Shandong Hanpu can be used for the tightening work of the above types of bolts respectively.
| Model | SSN-3T | SSN-5T | SHN-9T | |
| Freq | 50-60HZ | 50-60HZ | 50-60HZ | |
| Voltage | 230V 115V |
230V 115V |
230V 115V |
|
| Max Current | 7A 14A |
7A 14A |
7A 14A |
|
| Torque Range | 100-300N.m | 200-500N.m | 500-1200N.m | |
| Ro Speed (min-1) |
22rpm | 16rpm | 12rpm | |
| Weight (main body) |
4.5KG | 4.8KG | 5.9KG | |
| Protect Class | double insulation | |||
| Adaptable Bolts Dia | S-10T | M16, M20 | M20, M22, M24 | M27, M30 |
| A325 | 5/8", 3/4" | 3/4", 7/8", 1" | 1-1/8", 1-1/4" | |
Product function: Perform initial tightening work on high-strength torsional shear bolts according to construction requirements.
Product performance: It is suitable for the initial tightening of different types of high-strength construction bolts, and the adjustable torque range is wide.
Application: It can not only be used for initial tightening of torsional shear type high-strength bolts, but also for initial tightening of large hexagonal high-strength bolts.
The usage: When working, first adjust the scale on the controller to the specified torque value of the bolt, align the wrench socket with the bolt, and pull the switch to start the initial tightening work. After the wrench reaches the set torque value, the wrench will automatically Stop working, take the electric torsional shear wrench from the bolt at this time, and the initial tightening work is completed. This working step is similar to the operation method of the Shandong Hanpu electric torque wrench.
Do you need a electric shear wrench or a initial tightening electric torsional shear wrench, welcome to contact us anytime.
